Isothermal Sphere

Isothermal Sphere

Here we supplement the simplified set of principal governing equations with an isothermal equation of state, that is, $P$ is related to $\rho$ through the relation,

$P=c_s^2\rho ,$

where, $c_s$ is the isothermal sound speed.



Comparing this $P$-$\rho$ relationship to

Form A
of the Ideal Gas Equation of State,

$P_{\mathrm{g}\mathrm{a}\mathrm{s}}=\frac{\mathrm{\Re }}{\overline{\mu }}\rho T$

we see that,

$c_s^2=\frac{\mathrm{\Re }T}{\overline{\mu }}=\frac{kT}{m_u\overline{\mu }},$

where, $\mathrm{\Re }$, $k$, $m_u$, and $\overline{\mu }$ are all defined in the accompanying variables appendix. It will be useful to note that, for an isothermal gas, the enthalpy, $H$, is related to $\rho$ via the expression,

$dH=\frac{dP}{\rho }=c_s^{2}d\ln \rho .$

Governing Relations

Adopting solution technique #2, we need to solve the following second-order ODE relating the two unknown functions, $\rho$ and $H$:

$\frac{1}{r^2}\frac{d}{dr}\left(r^2\frac{dH}{dr}\right)=-4\pi G\rho$ .

Using the $H$-$\rho$ relationship for an isothermal gas presented above, this can be rewritten entirely in terms of the density as,

$\frac{1}{r^2}\frac{d}{dr}\left(r^2\frac{d\ln \rho }{dr}\right)=-\frac{4\pi G}{c_s^2}\rho ,$

or, equivalently,

$\frac{d^2\ln \rho }{d{r}^2}+\frac{2}{r}\frac{d\ln \rho }{dr}+{\beta }^2\rho =0,$

where,

${\beta }^2\equiv \frac{4\pi G}{c_s^2}.$

This matches the governing ODE whose derivation was published on p. 131 of the book by 📚 Emden, R. 1907, Gaskugeln (Leipzig).

Derivation Appearing on p. 131 of 📚 Emden (1907) (edited)
Emden (1907)	§2. Wir gehen wieder aus von der Gleichung (59) $\frac{d}{dr}\left(\frac{r^2}{\rho }\frac{dp}{dr}\right)=-4\pi G\rho r^2.$ Da wir haben $p=\rho HT,T=\mathrm{k}\mathrm{o}\mathrm{n}\mathrm{s}\mathrm{t}\mathrm{.}$, so ergibt sich $\frac{dp}{\rho }=HT\frac{d\rho }{\rho }=HTd\log \rho ,$ und setzen wir ${\beta }^2=\frac{4\pi G}{HT}$ (gramm-1 cent) und führen die Differentiation aus, so ergibt sich die Differentialgleichung der isothermal Gaskugel $\frac{d^2\mathrm{l}\mathrm{g}\rho }{d{r}^2}+\frac{2}{r}\frac{d\mathrm{l}\mathrm{g}\rho }{r}+{\beta }^2\rho =0.$
Note that, in Emden's derivation, $H$ is not enthalpy but, rather, the effective gas constant, $H=c_s^2/T$.

By adopting the following dimensionless variables,

${\mathfrak{𝔯}}_1\equiv {\rho }_c^{1/2}\beta r,\mathrm{a}\mathrm{n}\mathrm{d}{v}_1\equiv \ln (\rho /{\rho }_c),$

where ${\rho }_c$ is the configuration's central density, the governing ODE can be rewritten in dimensionless form as,

$\frac{d^2{v}_1}{d{\mathfrak{𝔯}}_1^2}+\frac{2}{{\mathfrak{𝔯}}_1}\frac{d{v}_1}{d{\mathfrak{𝔯}}_1}+e^{v_1}=0,$

which is exactly the equation numbered (II"a) that can be found on p. 133 of 📚 Emden (1907). Emden numerically determined the behavior of the function $v_1({\mathfrak{𝔯}}_1)$, its first derivative with respect to ${\mathfrak{𝔯}}_1$, ${v_1}^{\prime }$, along with $e^{v_1}$ and several other useful products, and published his results as Table 14, on p. 135 of his book. This table has been reproduced immediately below, primarily for historical purposes.

Note that a somewhat more extensive tabulation of the structural properties of isothermal spheres is provided by 📚 S. Chandrasekhar & G. W. Wares (1949, ApJ, Vol. 109, pp. 551 - 554). In this published work as well as in §22 of Chapter IV in [C67], Chandrasekhar has written the governing ODE in a form that we will refer to as the,

Isothermal Lane-Emden Equation

$\frac{1}{{\xi }^2}\frac{d}{d\xi }\left({\xi }^2\frac{d\psi }{d\xi }\right)=e^{-\psi }$

It is straightforward to show that this is identical to Emden's governing expression after making the variable substitutions:

${\mathfrak{𝔯}}_1\to \xi$        and         $v_1\to -\psi$.

Across the astrophysics community, Chadrasekhar's notation has been widely — although not universally — adopted as the standard.

Emden's Numerical Solution

Emden's (1907) Table 14 Emden's (1907) Table 14

Note: The entry highlighted in blue in the $3^{\mathrm{r}\mathrm{d}}$ column must be a typesetting error.

A more recent and more extensive tabulation of the structural properties of isothermal spheres is provided by: 📚 S. Chandrasekhar & G. W. Wares (1949, ApJ, Vol. 109, pp. 551 - 554):   The Isothermal Function 📚 G. P. Horedt (1986, Astrophysics and Space Science, Vol. 126, Issue 2, pp. 357 - 408):  Seven-Digit Tables of Lane-Emden Functions — See, in particular, pp. 405-406 (Sphere of polytropic index $n=\pm \mathrm{\infty }$). An analytic — but approximate — solution to the isothermal Lane-Emden equation can be found: F. K. Liu (1996, MNRAS, 281, 1197-1205):   Polytropic Gas Spheres: An Approximate Analytic Solution of the Lane-Emden Equation Priyamvada Natarajan & Donald Lynden-Bell (1997, MNRAS, 286, 268-270):   An Analytic Approximation to the Isothermal Sphere A. C. Raga, J. C. Rodríguez-Ramírez, M. Villasante, A. Rodríguez-González, & V. Lora (2013, Revista Mexicana de Astronomía y Astrofísica, 49, 63-69):   A New Analytic Approximation to the Isothermal, Self-Gravitating Sphere

A plot of $v_1$ versus $\ln {\mathfrak{𝔯}}_1$, as shown below in Figure 1a, translates into a log-log plot of the equilibrium configuration's $\rho (r)$ density profile. Notice that this isolated isothermal configuration extends to infinity and that, at large radii, the density profile displays a simple power-law behavior — specifically, $\rho \propto r^{-2}$. This is consistent with our general discussion, presented elsewhere, of power-law density distributions as solutions of the Lane-Emden equation.

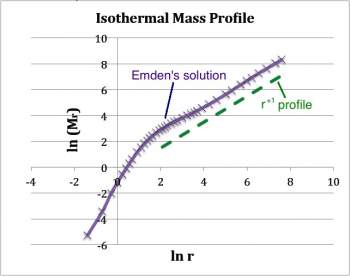

Figure 1: Emden's Numerical Solution
Plotted from Emden's (1907) tabulated data	Plotted from Emden's (1907) tabulated data
(a) The $(x,y)$ locations of the data points plotted in blue are drawn directly from column 1 and column 3 of Emden's Table 14 — specifically, $x=\ln ({\mathfrak{𝔯}}_1)$ and $y=v_1$. The dashed red line has a slope of $-2$ and serves to illustrate that, at large radii, the isothermal density profile tends toward a $\rho \propto r^{-2}$ distribution.	(b) The $(x,y)$ locations of the data points plotted in purple are drawn directly from column 1 and column 7 of Emden's Table 14 — specifically, $x=\ln ({\mathfrak{𝔯}}_1)$ and $y={\mathfrak{𝔯}}_1^2{v_1}^{\prime }$. The dashed green line has a slope of $+1$ and serves to illustrate that, at large radii, the isothermal $M(r)$ distribution tends toward a $M_r\propto r$ distribution.

Mass Profile

The mass enclosed within a given radius, $M_r$, can be determined by performing an appropriate volume-weighted integral over the density distribution. Specifically, based on the key expression for,

Mass Conservation

$\frac{d{M}_r}{dr}=4\pi r^2\rho$

in spherically symmetric configurations, the relevant integral is,

$M_r=\underset{0}{\overset{r}{\int }}4\pi r^2\rho (r)dr.$

But $M_r$ also can be determined from the information provided in column 7 of Emden's Table 14 — that is, from knowledge of the first derivative of $v_1$. The appropriate expression can be obtained from the mathematical prescription for

Hydrostatic Balance

$\frac{dP}{dr}=-\frac{G{M}_r\rho }{r^2}$

in a spherically symmetric configuration. Since, for an isothermal equation of state (see above),

$\frac{dP}{\rho }=c_s^{2}d\ln \rho ,$

the statement of hydrostatic balance can be rewritten as,

$M_r=\frac{c_s^2}{G}[-r^2\frac{d\ln \rho }{dr}]=\frac{c_s^2}{G{\rho }_c^{1/2}\beta }[-{\mathfrak{𝔯}}_1^2\frac{d{v}_1}{d{\mathfrak{𝔯}}_1}]=\left(\frac{c_s^6}{4\pi G^3{\rho }_c}{)}^{1/2}\right[-{\mathfrak{𝔯}}_1^2{v_1}^{\prime }].$

The quantity tabulated in column 7 of Emden's Table 14 is precisely the dimensionless term inside the square brackets of this last expression; having units of mass, the coefficient out front sets the mass scale of the equilibrium configuration and depends only on the choice of central density and isothermal sound speed. Hence, a plot of $\ln ({\mathfrak{𝔯}}_1^2{v_1}^{\prime })$ versus $\ln {\mathfrak{𝔯}}_1$, as shown above in Figure 1b, translates into a log-log plot of the equilibrium configuration's $M_r$ mass profile. Notice that, along with the radius, the mass of this isolated isothermal configuration extends to infinity and that, at large radii, the mass profile displays a simple power-law behavior — specifically, $M_r\propto r^{+1}$.

As was realized independently by 📚 R. Ebert (1955, Zeitschrift für Astrophysik, Vol. 37, pp. 217 - 232) and 📚 W. B. Bonnor (1956, MNRAS, Vol. 116, pp. 351 - 359), a spherically symmetric isothermal equilibrium configuration of finite radius and finite mass can be constructed if the system is embedded in a pressure-confining external medium. We discuss their findings elsewhere.

Summary

Based on the above derivations, the internal structural properties of an equilibrium isothermal sphere can be described in terms of the tabulated quantities provided in Emden's Table 14 as follows:

• Radial Coordinate Position:

Given the isothermal sound speed, $c_s$, and the central density, ${\rho }_c$, the radial coordinate is,

$r=({\rho }_c{\beta }^2{)}^{-1/2}{\mathfrak{𝔯}}_1=(\frac{c_s^2}{4\pi G{\rho }_c}{)}^{1/2}{\mathfrak{𝔯}}_1$ .

• Density & Pressure:

As a function of the radial coordinate, $r({\mathfrak{𝔯}}_1)$, the density profile is,

$\rho (r({\mathfrak{𝔯}}_1))={\rho }_c{e}^{v_1({\mathfrak{𝔯}}_1)}$;

and the pressure profile is,

$P(r({\mathfrak{𝔯}}_1))=(c_s^2{\rho }_c)e^{v_1({\mathfrak{𝔯}}_1)}$.

As has been explicitly pointed out in the above discussion associated with Figure 1a, the density profile — and, hence, also the pressure profile — extends to infinity and, at large radii, behaves as a power law; specifically, $\rho \propto r^{-2}$.

• Mass:

Given $c_s$ and ${\rho }_c$, the natural mass scale is,

$M_0\equiv (\frac{c_s^6}{4\pi G^3{\rho }_c}{)}^{1/2}$ ;

and, expressed in terms of $M_0$, the mass that lies interior to radius $r$ is,

$M_r=M_0[-{\mathfrak{𝔯}}_1^2{v_1}^{\prime }].$

As discussed above in the context of Figure 1b, at large radii, the mass increases linearly with $r$. Because the density and pressure profiles extend to infinity, this means that the mass of an isolated isothermal sphere is infinite.

• Enthalpy & Gravitational Potential:

To within an additive constant, the enthalpy distribution is,

$H(r({\mathfrak{𝔯}}_1))=c_s^2[-v_1({\mathfrak{𝔯}}_1)]$;

and the gravitational potential is,

$\mathrm{\Phi }(r({\mathfrak{𝔯}}_1))=-H(r({\mathfrak{𝔯}}_1))=c_s^2{v}_1({\mathfrak{𝔯}}_1)$.

• Mean-to-Local Density Ratio:

The ratio of the configuration's mean density, inside a given radius, to its local density at that radius is,

$\frac{\overline{\rho }}{\rho }=\frac{3M_r}{4\pi r^3\rho }=3[-\frac{{v_1}^{\prime }}{{\mathfrak{𝔯}}_1{e}^{v_1}}]$ .

As Figure 2 shows, at large $r$ this density ratio goes to the value of 3, which means that the term inside the square brackets goes to unity at large $r$. This behavior is consistent with the limiting power-law behavior of both $M_r$ and $\rho$, discussed above.

Figure 2: From Emden's Tabulated Data

Plot based on data from Emden's (1907) Table 14

The blue curve displays an evaluation of the density ratio, $[-3{v_1}^{\prime }/({\mathfrak{𝔯}}_1{e}^{v_1})]$, as a function of $\ln ({\mathfrak{𝔯}}_1)$, as determined from the data presented in Emden's Table 14, shown above.

Our Numerical Integration

via Direct Numerical Integration

The above governing relation — see especially Chandrasekhar's notation — may be rewritten as (see also, for example, §19.8, eq. 19.35 of [KW94]),

$\frac{d^{2}w}{d{r}^2}+\frac{2}{r}\frac{dw}{dr}$

$=$

$e^{-w},$

where we appreciate that,

$w\equiv \ln \left(\frac{\rho }{{\rho }_c}\right).$

We'll adopt the following finite-difference approximations for the first and second derivatives on a grid of radial spacing, ${\mathrm{\Delta }}_r$:

${w_i}^{\prime }$

$\approx$

$\frac{w_{+}-w_{-}}{2{\mathrm{\Delta }}_r}$

and,

${w_i}^{″}$

$\approx$

$\frac{w_{+}-2w_i+w_{-}}{{\mathrm{\Delta }}_r^2}.$

Our finite-difference approximation of the governing equation is, then,

$r_i\left[\frac{w_{+}-2w_i+w_{-}}{{\mathrm{\Delta }}_r^2}\right]+2\left[\frac{w_{+}-w_{-}}{2{\mathrm{\Delta }}_r}\right]$	$=$	$r_i{e}^{-w_i}$
$\Rightarrow r_i[w_{+}-2w_i+w_{-}]+{\mathrm{\Delta }}_r[w_{+}-w_{-}]$	$=$	${\mathrm{\Delta }}_r^2{r}_i{e}^{-w_i}$
$\Rightarrow w_{+}$	$=$	$\frac{{\mathrm{\Delta }}_r^2{r}_i{e}^{-w_i}+2r_i{w}_i+w_{-}({\mathrm{\Delta }}_r-r_i)}{({\mathrm{\Delta }}_r+r_i)}.$

Now, for the first two steps away from the center — where, $w_i=w_0=0$ and $r_i=r_0=0$ — we will use the following power-series expansion (see, for example, eq. 377 from §22 in Chapter IV of [C67]) to determine the value of $w_i$:

$w_1$

$=$

$\frac{{\mathrm{\Delta }}_r^2}{6}-\frac{{\mathrm{\Delta }}_r^4}{120}+\frac{{\mathrm{\Delta }}_r^6}{1890},$

and,

$w_2$

$=$

$\frac{(2{\mathrm{\Delta }}_r{)}^2}{6}-\frac{(2{\mathrm{\Delta }}_r{)}^4}{120}+\frac{(2{\mathrm{\Delta }}_r{)}^6}{1890}.$
